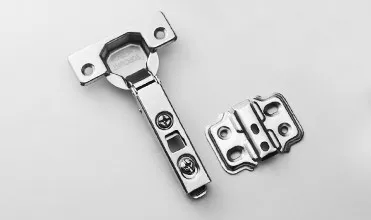

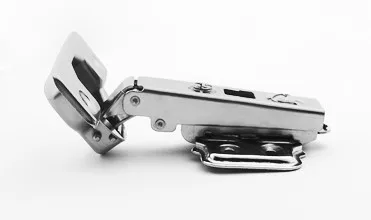

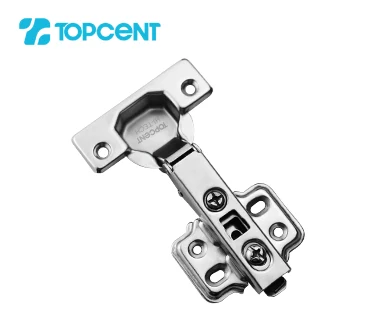

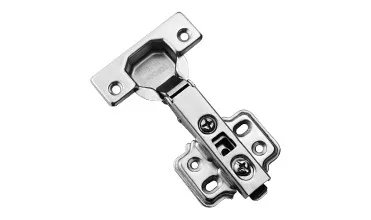

Clip on two way kitchen cabinet concealed hinges

FOB Reference Price:Get Latest Price
$0.14 - $0.175 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Furniture Hinge, Full-overlay
Place of Origin:
Guangdong, China
Brand Name:
TOPCENT
Model Number:
CH.2639
Commodity:
kitchen cabinet concealed dtc hinges
Material:
Cold-rolled steel
Finish:
Nickel
Diameter of hinge cup:
35mm
Depth of hinge cup:
11.3mm
Door thickness:
14-23mm
Openning angle:
100°
Function:
Self closing
OEM Technical Support:
Welcome
Supply Ability
Supply Ability:
360000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Bulk packing: 200 pcs/carton
Port
Huangpu, Guangzhou, or as your required
Specification
35mm cup two way concealed hinge
Material
Cold-rolled steel
Finish
Nickel
Door thickness
14-23 mm
Opening angle
100°
Diameter of hinge cup
35 mm
Weight
74±2 g
Function
Self closing
OEM Technical Support
Welcome
Installation
Fixed System / Screw fixing / Press-in fixing
Opening & closing test
More than 50,000 times
Salt spray test
More than 48 hours
Annual production
360,000,000 pcs  per year
Optional
Accessories
Cup cover cap / Arm cover cap / Self - tapping Screws
Product Information

Striped opening clip


Striped clip design is to increased friction when press the clip, which easy to install and remove the hinge.

Quick assembly & disassembly


The hinge releases in response to a light press on the sliding latch, easy for cleaning the board and moving a new position.

Big Pressed area design


The big pressed area design which can be the same level as the board, more seamless and looks more beautiful.

Two way mechanism


0°~35° is soft closing, 35°~105° is any hovering, avoid to hurt the board, also better improve hinge working life span.

Quality assurance


Passed over 50,000 times for opening and closing test.
Passed over 48 hours salt & spray Test.
