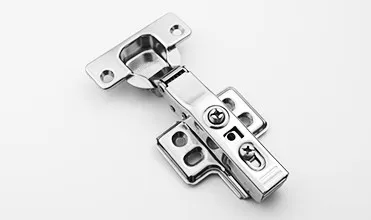

TOPCENT furniture kitchen hetal stainless steel concealed hydraulic auto soft close cabinet door furniture hinge

FOB Reference Price:Get Latest Price
$0.49 - $0.57 / Pieces | 5000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Furniture Hinge, Full-overlay cabinet hinge
Place of Origin:
Guangdong, China
Brand Name:
TOPCENT
Model Number:
CH.3169
Commodity:
Stainless steel furniture kitchen cabinet concealed hinge
Material:
Stainless steel 201
Finish:
Polished
Diameter of hinge cup:
35mm
Depth of hinge cup:
11.3mm
Door thickness:
14-23mm
Openning angle:
105°
Factory:
Over 30 years' production experience
OEM Technical support:
Welcome
Supply Ability
Supply Ability:
360000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Inner packing :2 pcs / bag;
Outer packing :100 pcs / carton
Port
Huangpu, Guangzhou, or as your required
Specification
Soft closing concealed hinge
Material
Cold-rolled steel
Finish
Polished
Door thickness
14-23 mm
Opening angle
110°
Diameter of hinge cup
35 mm
Weight
103±2 g
Function
Solf closing
OEM Technical Support
Welcome

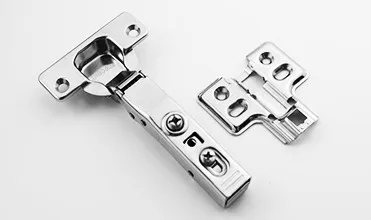

Installation
Clip on system / Screw fixing / Press-in fixing
Life cycle test
More than 50,000 times
Salt spray test
More than 48 hours
Annual production
360,000,000 pcs  per year
Optional
Accessories
Cup cover cap / Arm cover cap / Self - tapping Screws
Product Information

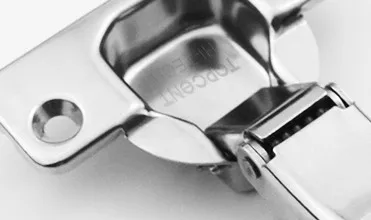

Arc shape body


The arc design can not scratch the hand, loos like more beautiful and when entering the wooden plank, the cup head will more tightly to the plank.

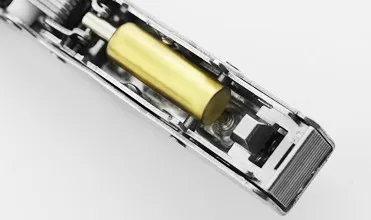

Brass hydraulic cylinder


The integrated soft-closing mechanism lets drawer close more gentle and quietly.

Dent design


To avoid the hinge cup and arm to be creaked easily which can protect your hand when you close the door.

Stainless material


To avoid the rust and better improve the
working life span of hinge.

Quality assurance


Passed over 50,000 times for opening and closing test.

Passed over 48 hours salt & spray Test.

Full - overlay

CH.3169

Half - overlay

CH.3168

Inset

CH.3167
