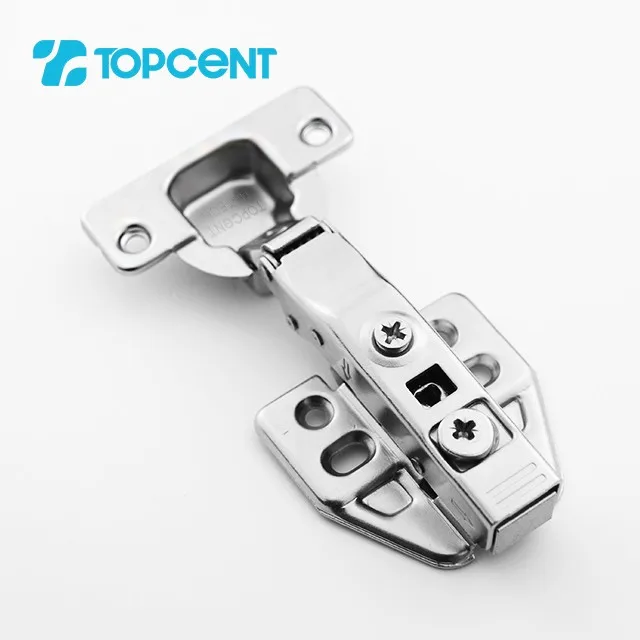

One way soft close furniture kitchen concealed door hinge

FOB Reference Price:Get Latest Price
$0.355 - $0.43 / Pieces | 5000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Furniture Hinge, Full-overlay
Place of Origin:
Guangdong, China
Brand Name:
TOPCENT
Model Number:
CH.7179
Commodity:
One way soft close furniture kitchen concealed door hinge
Material:
Cold-rolled steel
Finish:
Nickel
Diameter of hinge cup:
35mm
Depth of hinge cup:
11.3mm
Door thickness:
14-23mm
Openning angle:
110°
Function:
Soft closing
Packing:
Inner packing:2pcs/bag; Outer packing:200pcs/carton
Supply Ability
Supply Ability:
360000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Inner packing: 2 pcs/bag;
Outer packing: 200 pcs/carton
Port
Huangpu, Guangzhou, or as your required
Specification
Soft closing concealed hinge
Material
Cold-rolled steel
Finish
Copper bottom + Nickel
Door thickness
14-23 mm
Opening angle
100°
Diameter of hinge cup
35 mm
Weight
113±2 g
Function
Self closing
OEM Technical Support
Welcome
Installation
 Slide on system / Screw fixing / Press-in fixing
Opening & closing test
More than 50,000 times
Salt spray test
More than 48 hours
Annual production
360,000,000 pcs  per year
Optional
Accessories
Cup cover cap / Arm cover cap / Self - tapping Screws
Product Information

Dent design


To avoid the hinge cup and arm to be creaked, it also can protect your hand when you close the door.

Quick assembly & disassembly


The hinge releases in response to a light press on the sliding latch, easy for cleaning the board and moving a new position.

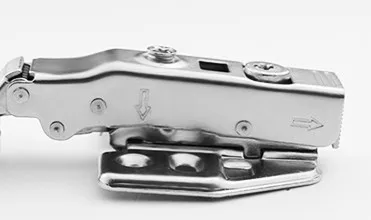

Height Adjustment


With big hole design, the height of door panel can be adjusted within 2 mm.

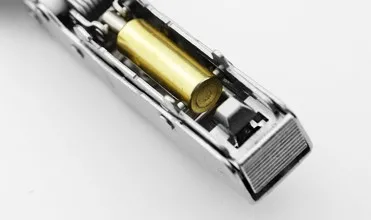

Brass hydraulic cylinder


Double finish--copper bottom + nickel for better anti-rust ability.

Quality assurance


Passed over 50,000 times for opening and closing test
Passed over 48 hours salt & spray Test
