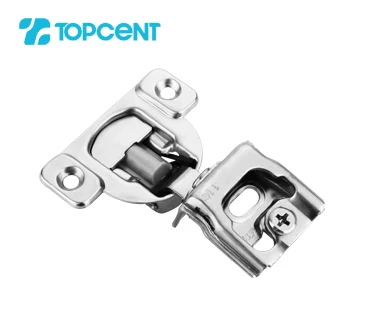

Topcent 1/2 inch overlay short arm face frame cabinet soft close concealed american hinge

FOB Reference Price:Get Latest Price
$0.49 - $0.54 / Pieces | 3000 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Customization:
Customized logo (Min. Order: 6000 Pieces)
Customized packaging (Min. Order: 6000 Pieces)

More

Graphic customization (Min. Order: 6000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Furniture Hinge
Place of Origin:
Guangdong, China
Brand Name:
TOPCENT
Model Number:
CH.6880
Commodity:
Short arm american cabinet soft close concealed hinge
Material:
Cold-rolled steel
Finish:
Nickel
Function:
Solf close american hinge
Diameter of hinge cup:
35mm
Depth of hinge cup:
11.3mm
Door thickness:
14-23mm
Opening angle:
95°
OEM Technical support:
Welcome
Factory:
Over 30 years' production experience
Supply Ability
Supply Ability:
360000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Inner packing:2pcs/bag
Outer packing:300pcs/carton
Port
Guangzhou, Shenzhen or as your required
Specification
American hinge
Material
Cold-rolled steel
Finish
Nickel
Door thickness
14-23 mm
Opening angle
95°
Diameter of hinge cup
35 mm
Weight
46±2 g
Function
Soft closing
OEM Technical Support
Welcome
Installation
 Slide on system / Screw fixing / Press-in fixing
Opening & closing test
More than 50,000 times
Salt spray test
More than 48 hours
Annual production
30,000,000 pcs  per month
Optional
Accessories
Cup cover cap / Arm cover cap / Self - tapping Screws
Product Information

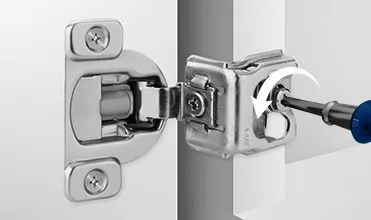

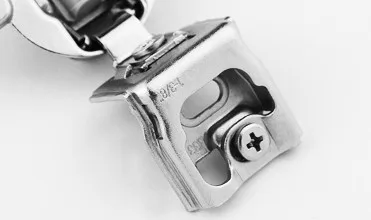

Adjustable screw


By adjusting the screw, the direction of the door can be ensured by ±2 mm upwards.

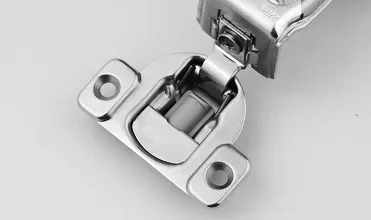

Soft-closing mechanism on head


The integrated soft-closing mechanism lets drawer close more gently and quietly.

No plate design


Have more smaller volume and make more closely with the board.

Cup head back arc 37 mm


The contact area with the panel is increased, the water surface is flat and the product is close to the wood board, which is not easy to fall off.
